For Sale BSIDE Digital Multimeter 8000 High precision True RMS Auto Range Ammeter Voltmeter Smart Capacitor Temperature NCV Ohm Hz Tester 4001163212096

Get BSIDE Digital Multimeter 8000 High precision True RMS Auto Range Ammeter Voltmeter Smart Capacitor Temperature NCV Ohm Hz Tester only US $5.58 - 31.13 just for today

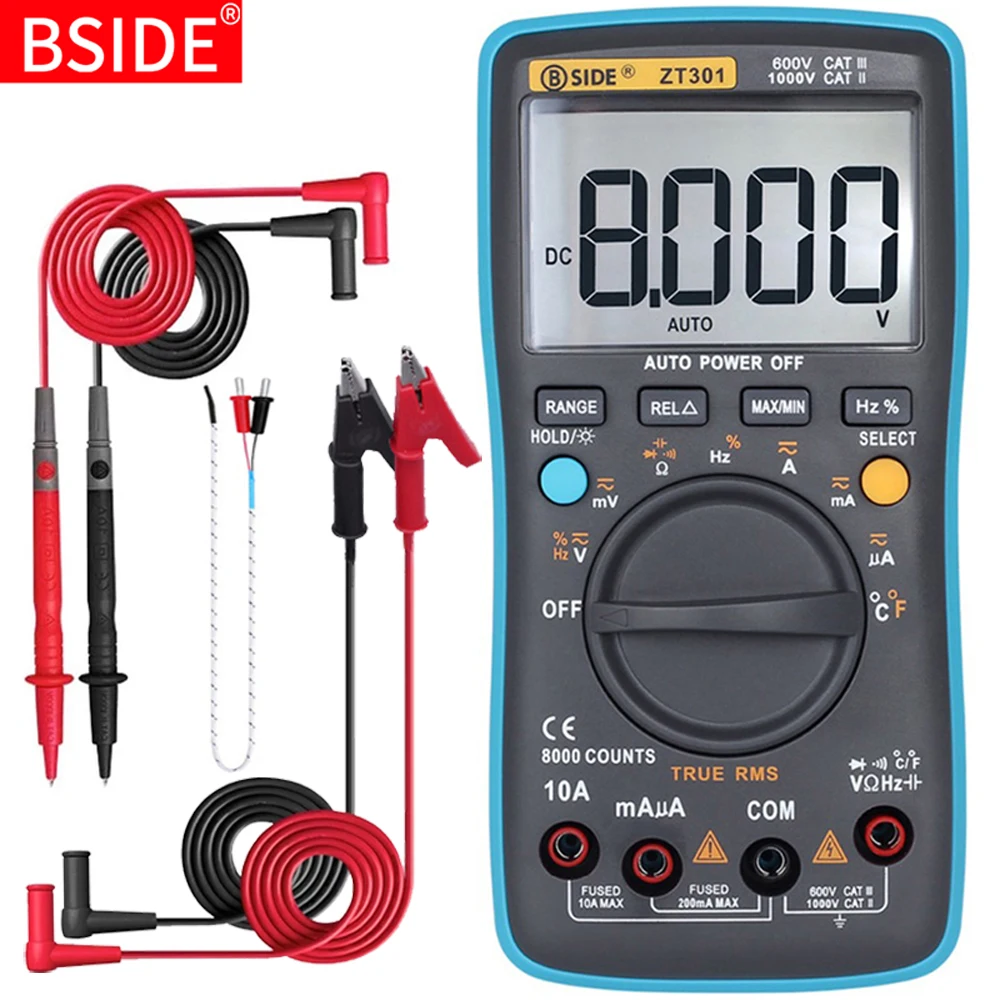

BSIDE Digital Multimeter 8000 High precision True RMS Auto Range Ammeter Voltmeter Smart Capacitor Temperature NCV Ohm Hz Tester

Product ID : 4001163212096

Price : US $5.58 - 31.13

* Price Update at : 2020-07-31 *

click button to claim coupon

The blazing heat of the summer months is already killing us. We just want to stay cool within our home and relax in our comfy pajamas and skirts. Going out shopping BSIDE Digital Multimeter 8000 High precision True RMS Auto Range Ammeter Voltmeter Smart Capacitor Temperature NCV Ohm Hz Tester in such scorching heat is mostly a big task for everyone. Visiting one store to another in the shopping mall or crowded companies are so exhausting. Shopping means you are going to spend hours and hour's right from walking through the crowd to dealing with shopkeepers and then standing in a long queue in a billing counter to pay the bills.



There is always one suitable for you !









It is an Auto-ranging digital multimeter using double-integral style A/D transform as the core.



The product is battery powered. It is characterized by stable function and high reliability, with the features of overload protection and Large LCD display for clear reading. It is an ideal tools for lav, factory, radio fans and family use.



True RMS measurement.



Resistance capacitance frequency file high voltage 550V protection.



Max display: 4000 counts( ZT100 ) / 6000 counts( ZT102 ) / 8000 counts( ZT301 ) /  9999 counts( ZT-X ).



Measurement mode:double-integral style A/D transform.



Sample  rate:3 times per second.



LCD display/Backlight display.



Auto Range, Data retention, Low voltage indication, Automatic shutdown.



Maximum/Minimum.( ZT301 )



Over range indication:OL.



Polarity automatic recognition.



Main measurement: AC / DC Voltage, AC / DC Current, Capacitance, Resistance, Diode, Continuity, Frequency, Duty ratio, Temperature (ZT100 Not have) measurement.





The difference between the four products:









ZT100 Test Range:





DC voltage: 400.0mV/4.000V/40.00V/400.0V/600V. ( 0.1mV/1mV/10mV/100mV/1V )



AC voltage (RMS): 400.0mV/4.000V/40.00V/400.0V/600V. ( 0.1mV/1mV/10mV/100mV/1V )



DC current: 40.00mA/400.0mA/10.00A. ( 10μA/100μA/10mA )



AC current (RMS): 40.00mA/400.0mA/10.00A. ( 10μA/100μA/10mA )



Resistance: 400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ/40.00MΩ. ( 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ )



Capacitance: 4.000nF/40.00nF/400.0nF/4.000μF/40.00μF/4000μF/4000μF. ( 1pF/10pF/1nF/10nF/100nF/1000nF )



Frequency: 99.5Hz/999.5Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz. ( 0.5Hz/0.5Hz/1Hz/10Hz/100Hz/1kHz )



Duty cycle: 0.1% to 99.9%.



Diode: Yes.



Continuity: Yes.



Backlight: Yes.





ZT102 / ZT301 Test Range:



ZT-X Test Range:





Maximum Display:  9999 Counts



True RMS:  Yes



DC voltage: 999.9mV/9.999V/99.99V/999.9V ±(0.5%+3),  9.999mV/99.99mV ±(0.5%+3).



AC voltage: 999.9mV/9.999V/99.99V/750V ±(1.0%+3),  9.999mV/99.99mV ±(1.0%+3).



DC current: 999.9mA/9.999A ±(1.0%+3),

 99.99mA/9999μA±(0.8%+3).



AC current: 999.9mA/9.999A ±(1.2%+3),

 99.99mA/9999μA ±(1.0%+3).



Resistance: 99.99Ω ±(1.0%+3),

 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ ±(0.5%+3),

 9.999MΩ ±(1.5%+3),  99.99MΩ±(3.0%+5).



Capacitance: 9.999nF ±(5.0%+20),

 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ±(2.0%+5),  9.999mF ±(5.0%+5).



Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000MHz ±(0.1% + 2).



Duty Cycle: 1%~99% ±( 0.1%+2).



Temperature: -20°~1000°(-4°~1832°) ±(2.5%+5).



Diode test:  Yes.



Continuity test:  Yes



NCV test:  Yes.



Over range indication:  Yes.



Backlight:  Yes.



Data hold:  Yes.



Auto range:  Yes.



Auto power off:  Yes.



Low voltage indication:  Yes.



Supply power: 2 x 1.5V AA battery (not included).



Product Size: 146 x 72 x 33mm.





Package includes:



1 * Multimeter.  1 * test clip.



1 * Portable cloth bag.  1 * color box.



1 * T1101 Alligator Clip Test Lead (worth $ 7)



1 * English manual
